Aluminum Rolled Formed Roof (Cool Cell Roof System)

DWG: ALUMINUM ROLLED FORM ROOF-V2.DWG · DATE: 01-22-03 · DRAWN BY: BRT

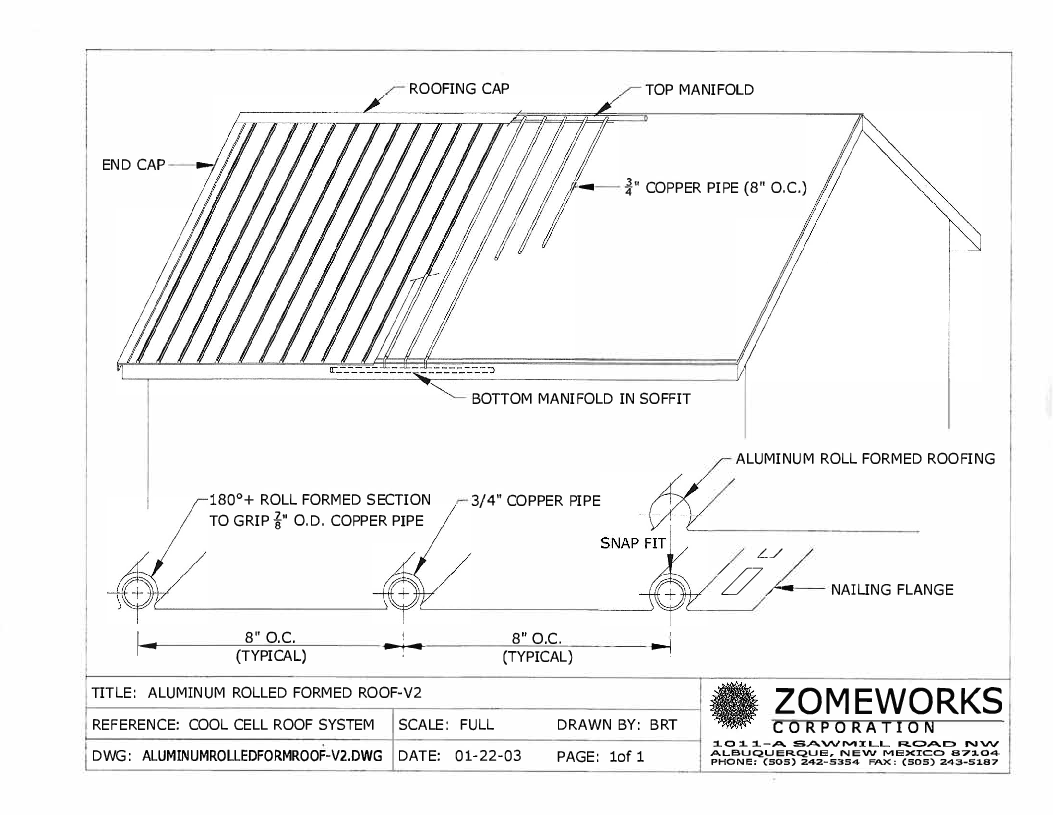

Components (from diagram)

ROOFING CAP
END CAP
TOP MANIFOLD
BOTTOM MANIFOLD IN SOFFIT
COPPER PIPE (8” O.C.) — 3/4” copper pipe, 8” o.c. typical
ALUMINUM ROLL FORMED ROOFING — 180° + roll formed section to grip O.D. copper pipe
NAILING FLANGE

REFERENCE: COOL CELL ROOF SYSTEM
